【Pre-vendita】Twotrees TTC-H40/H80 Macchina Fresatrice CNC
Prezzo di listino
€1.308,95
Prezzo di listino
Prezzo scontato
€1.308,95
Prezzo unitario
per
Spese di spedizione calcolate al check-out.
Limited Time!
Labor Day DlY Sale Save up to 59% OFF
00
d
00
h
00
m
00
s
Order TTC-H80 now – Ships by late September
- Advanced 500W Spindle
- Premium 800W Router Machine + 500W Spindle
- Ultra 20W Laser Module + 800W Router Machine + 500W Spindle
Impossibile caricare la disponibilità di ritiro
Prezzo di listino
€1.308,95
Prezzo di listino
Prezzo scontato
€1.308,95
Caratteristiche principali
Galleria Dettagli
Scenario Utente
Recensioni degli utenti

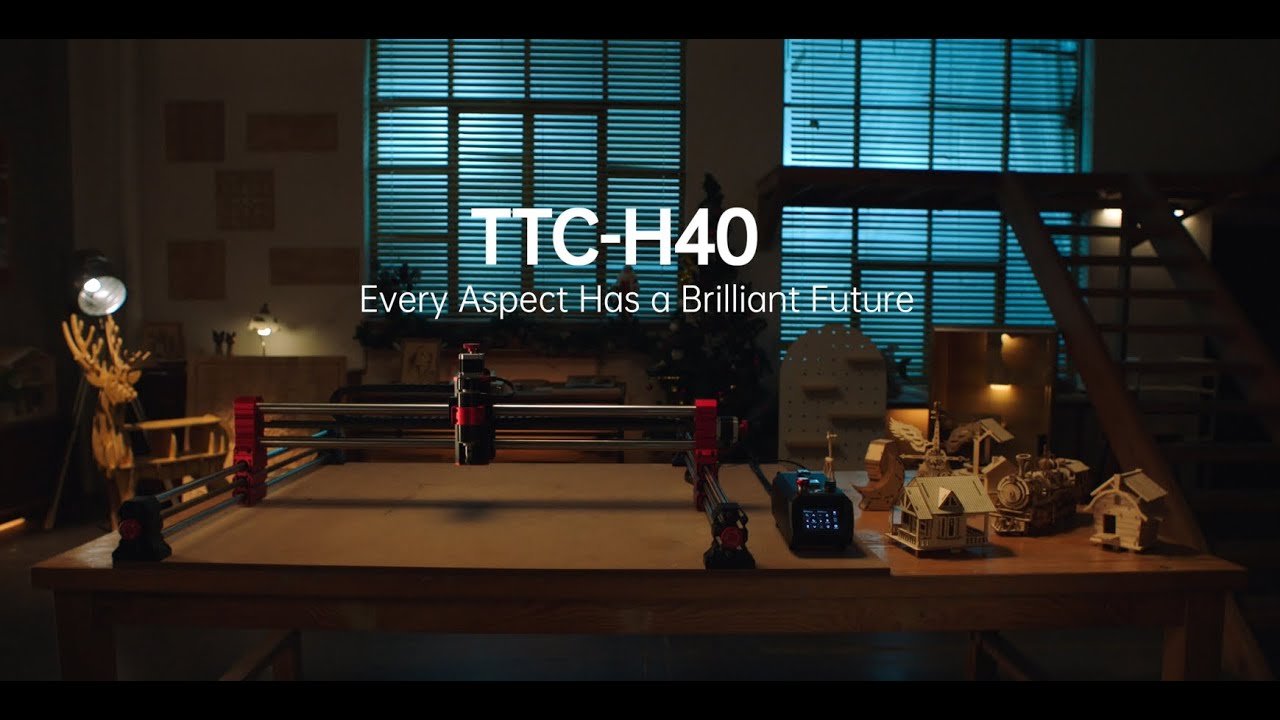

Product Video

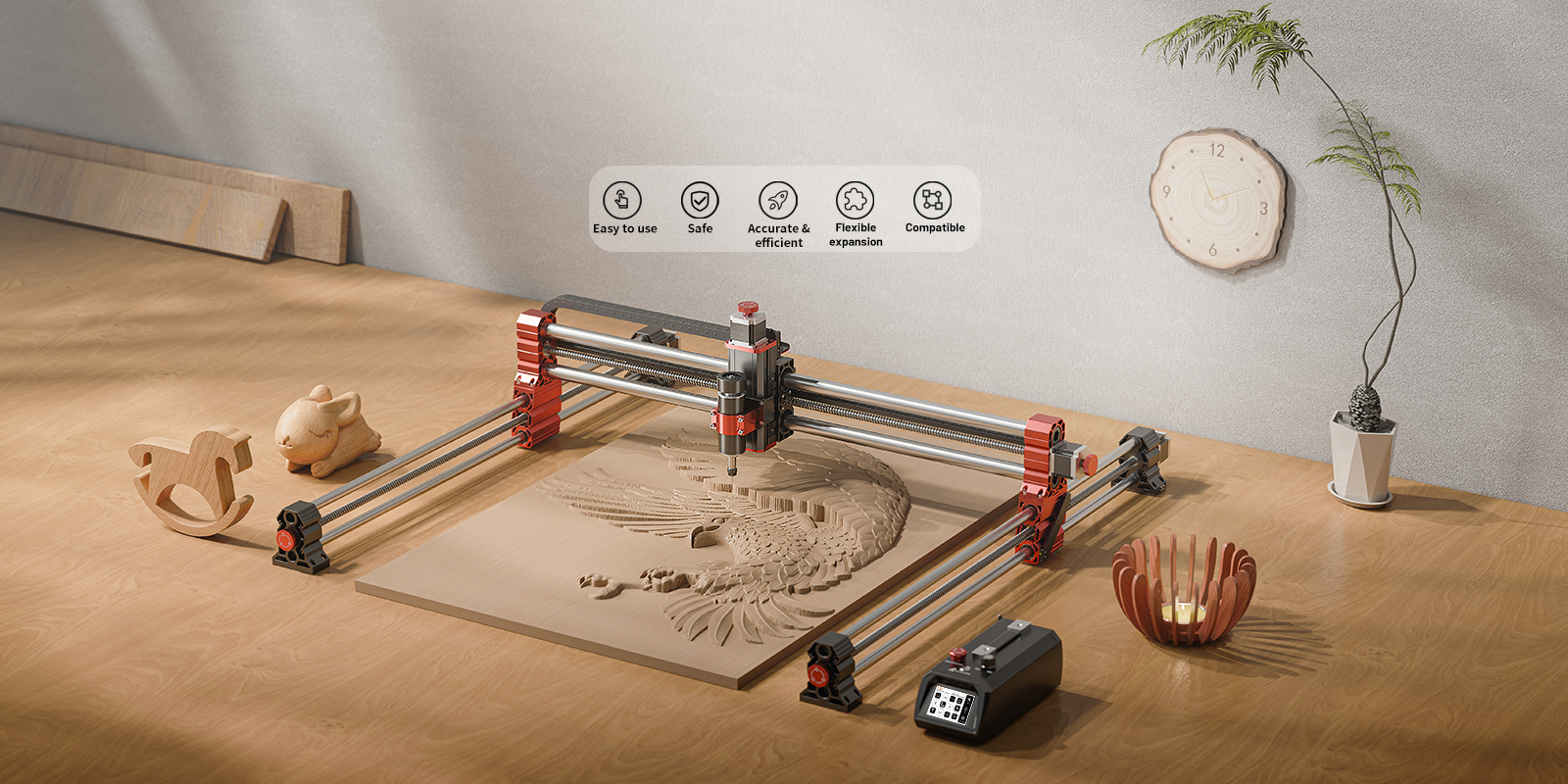

Features That Makes TTC-H40 Stand Out

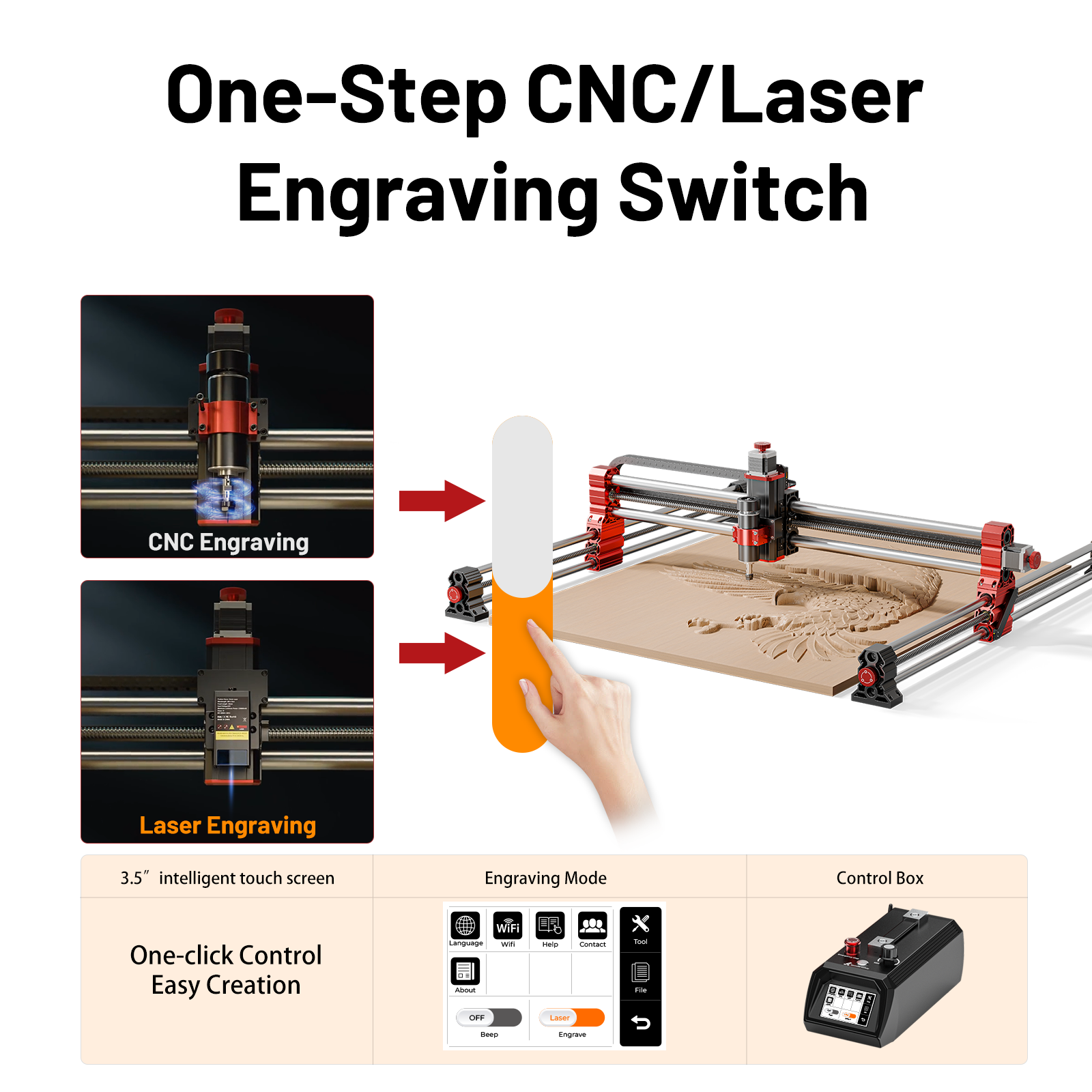

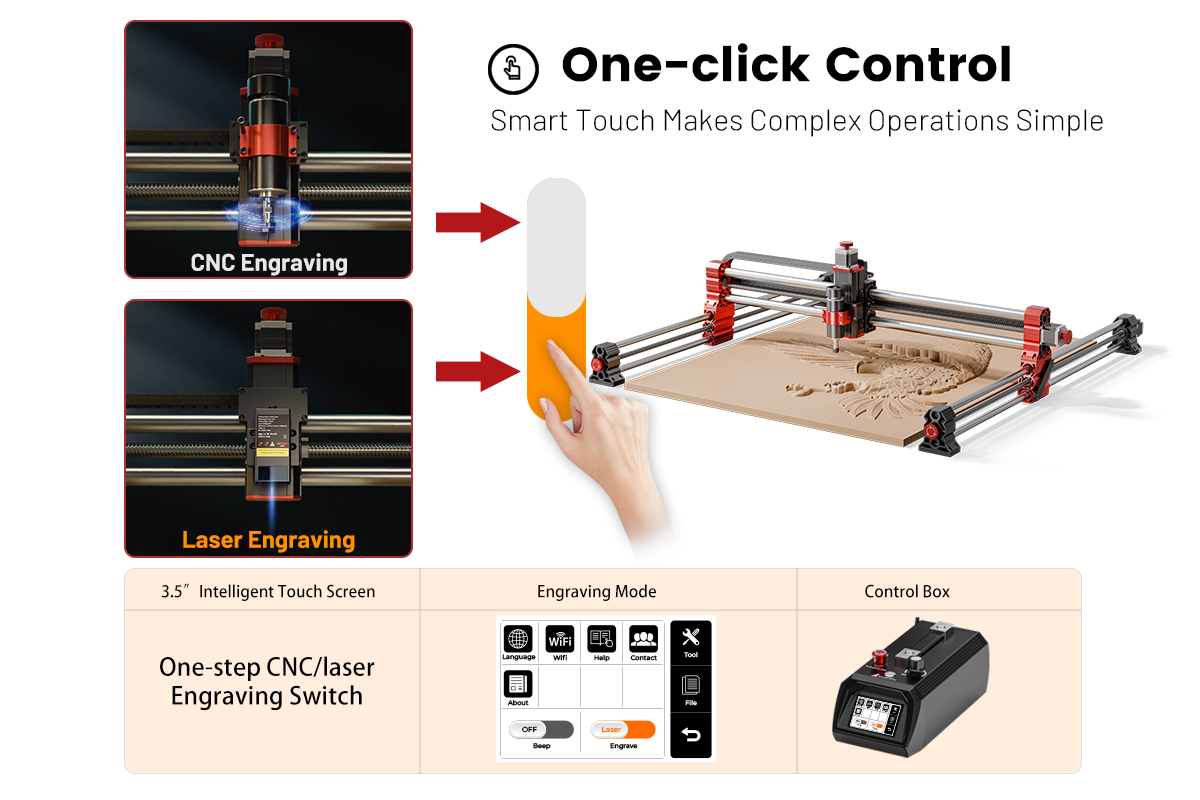

All-round Engraving, One-click Control
Multi-dimensional Advantages Make Engraving Simpler and More Efficient,Unlock a New Realm of Engraving,Create a Perfect Engraving Experience

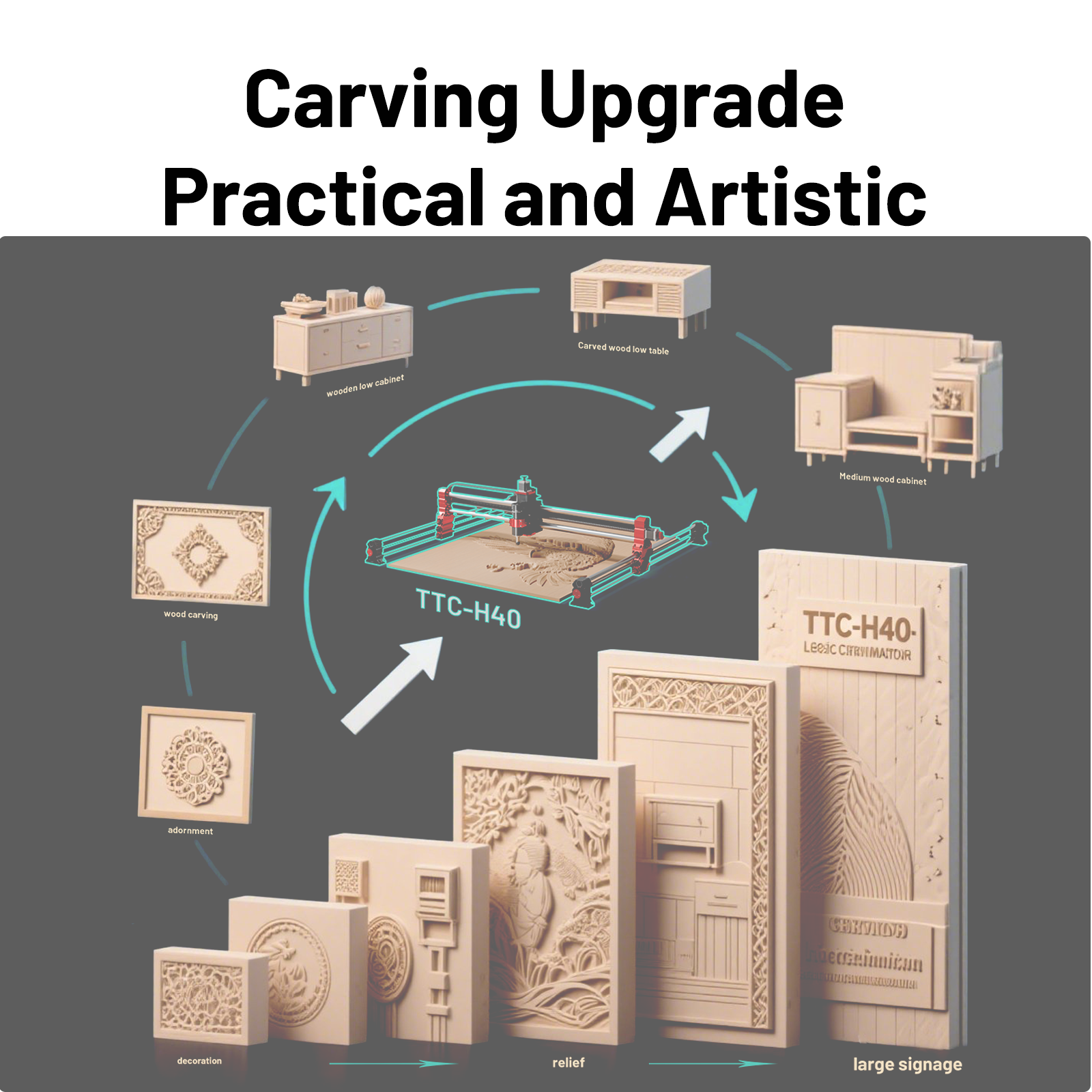

Carving Upgrade,Practical and Artistic
Ideal for Creating Functional Pieces such as Custom Furniture and Decorative ltems such as Personalised Signage. lts Ability to Emboss, Add Depth and Texture

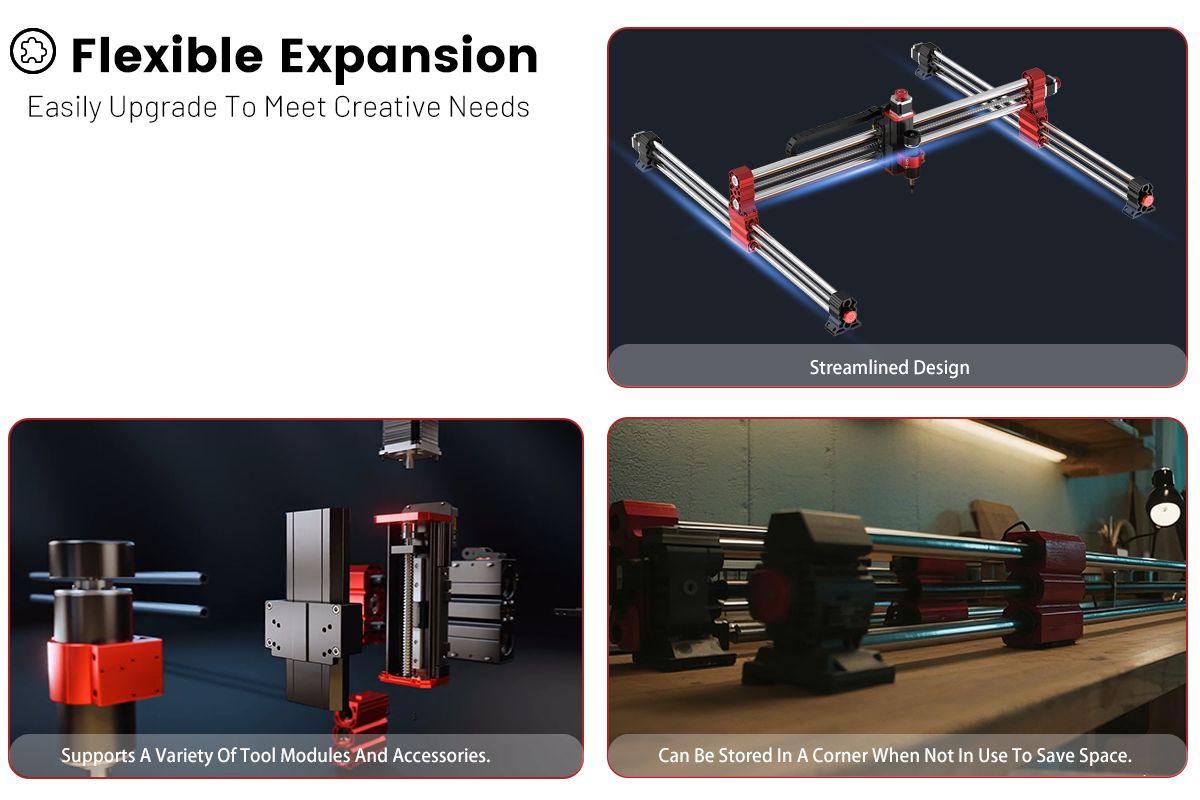

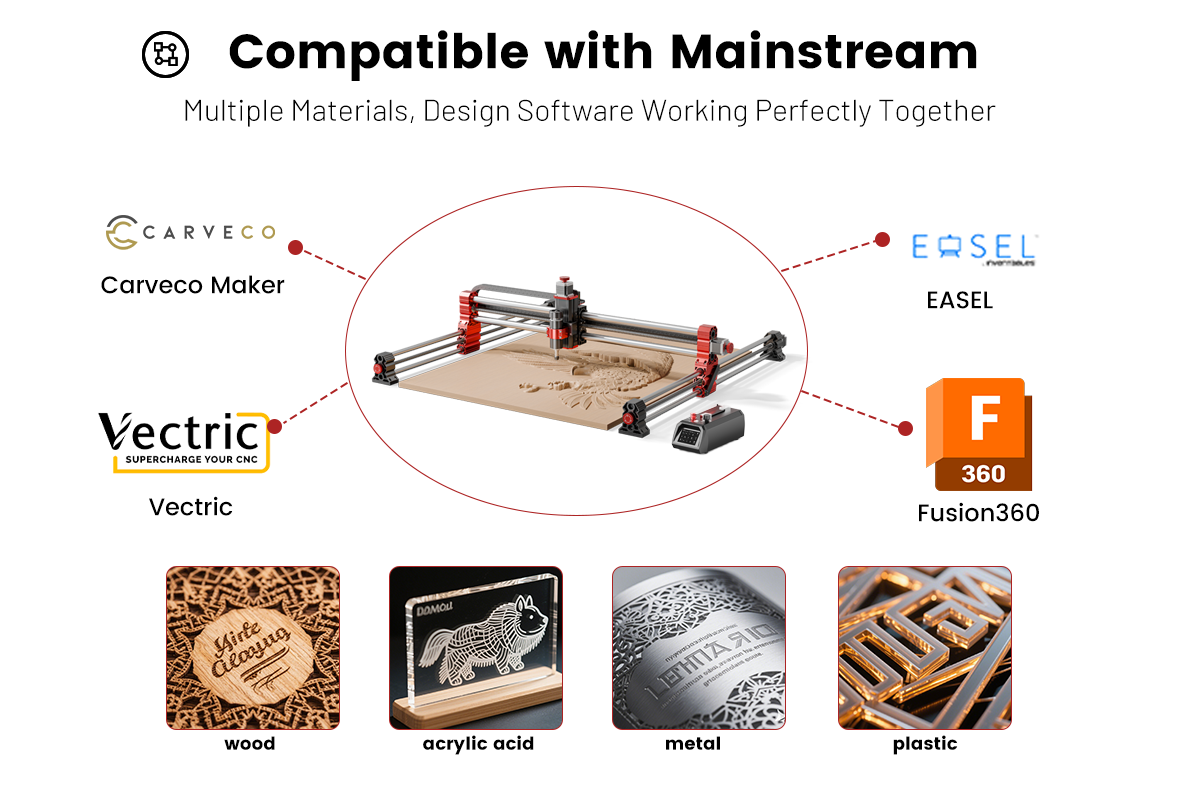

Powerful Scalability and Compatibility
Creativity Without Boundaries, Unlimited Carving
Unlock Your Creative Potential with TTC-H40 and Create Unique Home Art
Creative Choice Of Global Users
Real Feedback from Global Creators such as Creative Studio Users, DlY Enthusiasts.Small Business Owners, Educational Institution Users, and Professional Users
Product Compare
Product
Twotrees TTC-H40 CNC Router Machine
From
€1.308,95
Twotrees TTC-H80 CNC Router Machine
From
€2.299,00
Macchina Router CNC Twotrees TTC6050
From
€1.308,95
Twotrees TTC450 Ultra CNC Router Machine
From
€645,95
Machine weight
38.3kg
68.2kg
35.9kg
19kg
Overall Power
150W
160W
150W
160W
Spindle Speed
12000rpm
12000rpm
12000rpm
12000rpm
Engraving Area
1000*1000*100mm
1000*2000*100mm
600*500*100mm
460*460*100mm
Engraving Speed
1800mm/Min
1800mm/Min
5000mm/Min
800mm/Min
Engraving Accuracy
100±0.05mm
100±0.05mm
100±0.05mm
100±0.05mm
Transmission Screw Models
XY-axis Trapezoidal Screws
XY-axis Trapezoidal Screws
Ball Screws + Linear Guides
T8 4mm Screw
Main Body Material
Aluminum+Optical Axis
Aluminum+Optical Axis
Aluminum + Injection Molded Parts
Aluminum + Stainless Steel + Injection Molding
Product
Specifications
Body material
Aluminum Alloy
Net weight
H40: 38.3kgH80: 68.2kg
Control box size
300 x 137 x 131mm

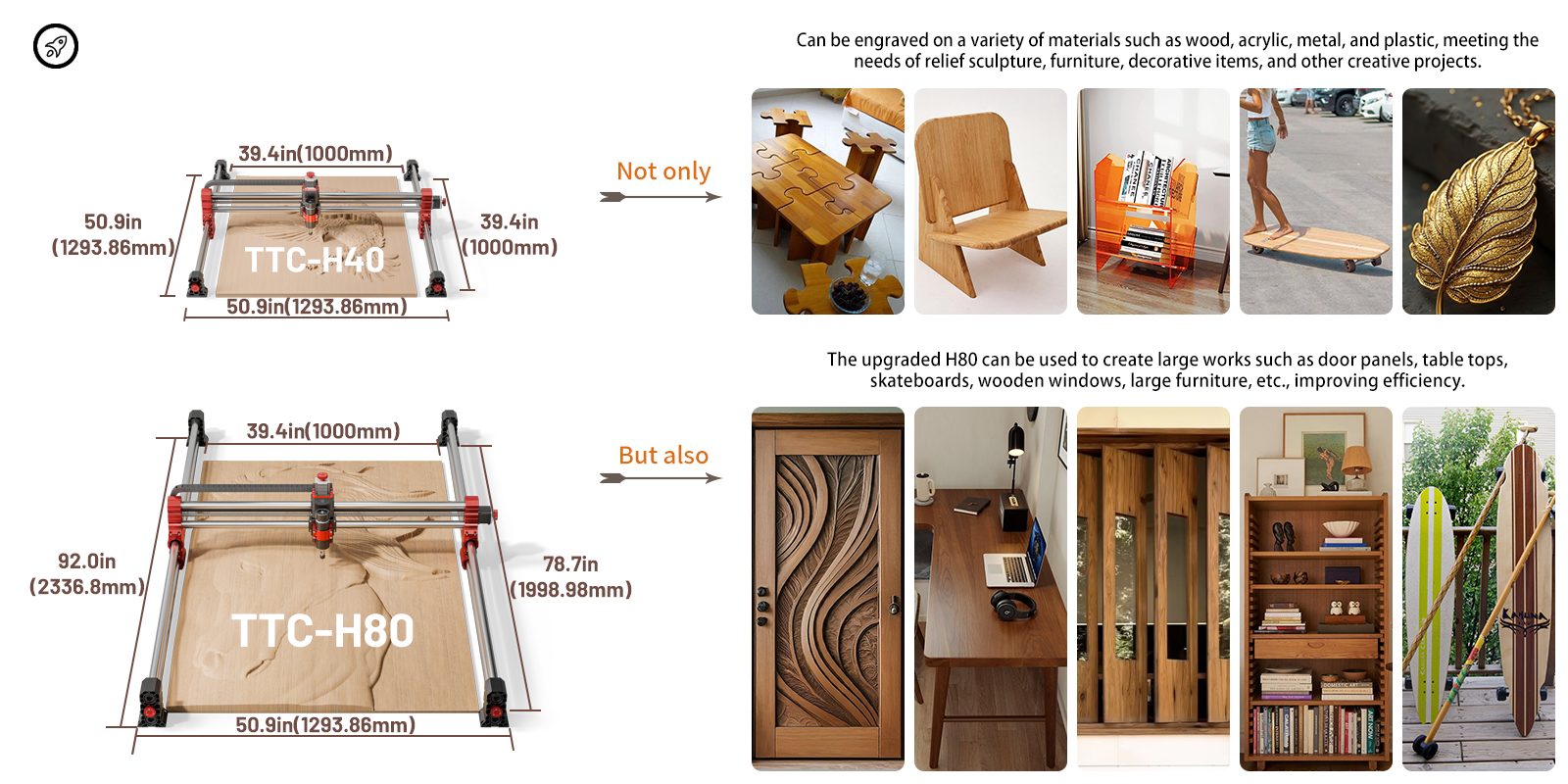

Machine dimensions
H40: 1292.5 x 1290.5 x 404.5mmH80: 2336 x 1298.5 x 425mm

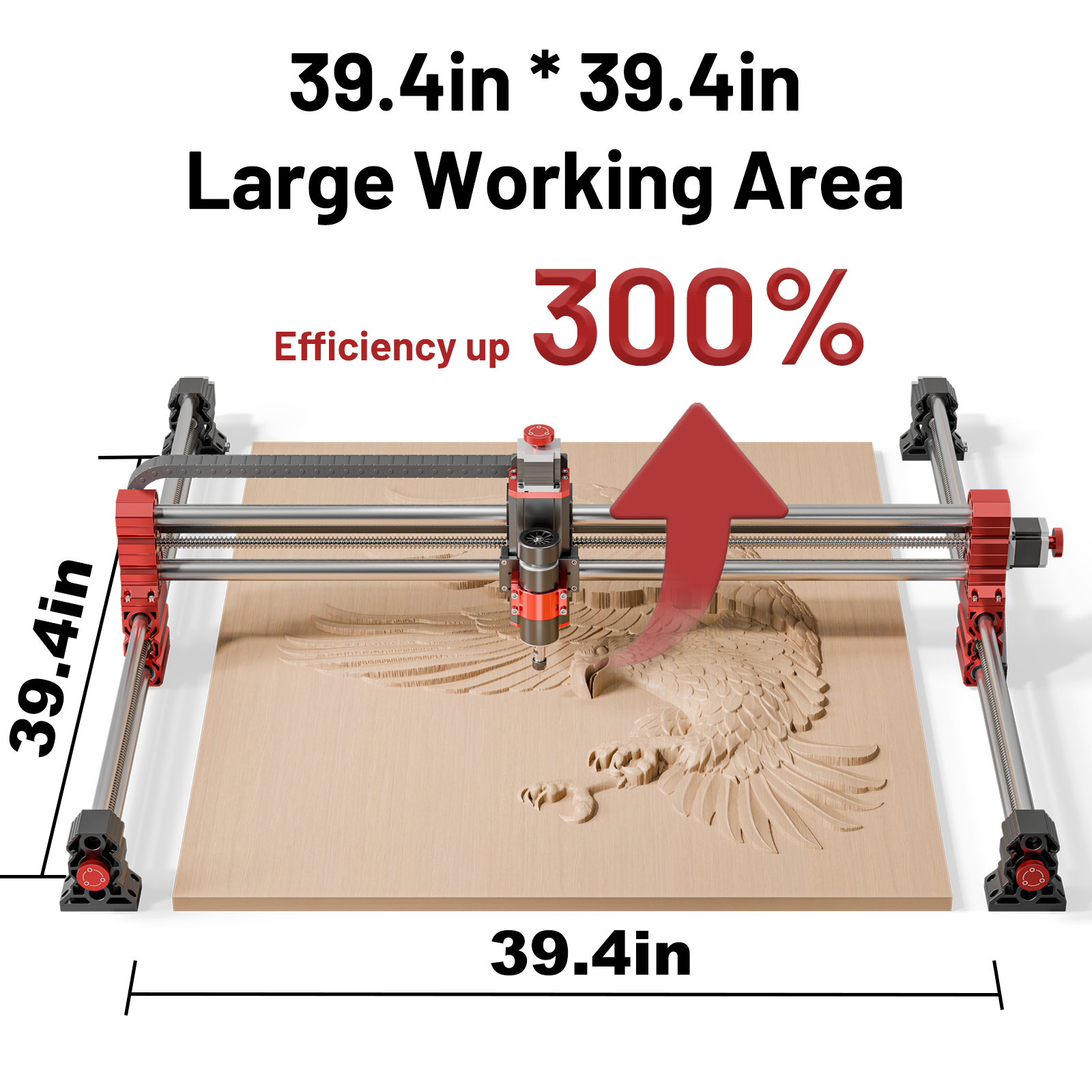

Working range
H40: 1000 x 1000 x 100mm(39.4in*39.4in* 4in) H80: 1000 x 2000 x 100mm(39.4in*78.7in* 4in)
Supported tool diameter
0.5mm to 7mm (ER11 Collet)
Compatible engraving materials
Plywood, MDF, Solid Wood, Acrylic, Carbon Fiber, Aluminum,Copper, Stainless Steel
Power supply
216W dual-channel switching power supply
Overall power
H40: 150W, H80: 160W
Input voltage
100AC-240AC 50HZ
Output voltage
OUT1:DC24V/4A OUT2:DC0-100V
Touch screen
3.5-inch resistive touch screen (480*320 resolution)
Firmware type
GRBL open source, supports both CNC and laser (no firmware required)
Spindle module
500W spindle standardOptional: 800/2000/3000W AC trimmerBLDC4475 brushless motor
Spindle speed
8000-30000 RPM depending on installation
Engraving accuracy
100+0.05mm
Maximum engraving speed
1800mm/Min
Maximum acceleration
500mm/s²
Tool size
According to the inner hole size of ER11 collet, it supports 0.5-6MM diameter tools
Engraving layer height
0.1mm-20mm for non-metals 0.1mm-0.2mm for metals
Cam software
Vectric、Fusion360、EASEL、Carveco Maker
Engraving method
USB Connection,Wi-Fi 2.4G Hz,TF Card
Touchscreen functions

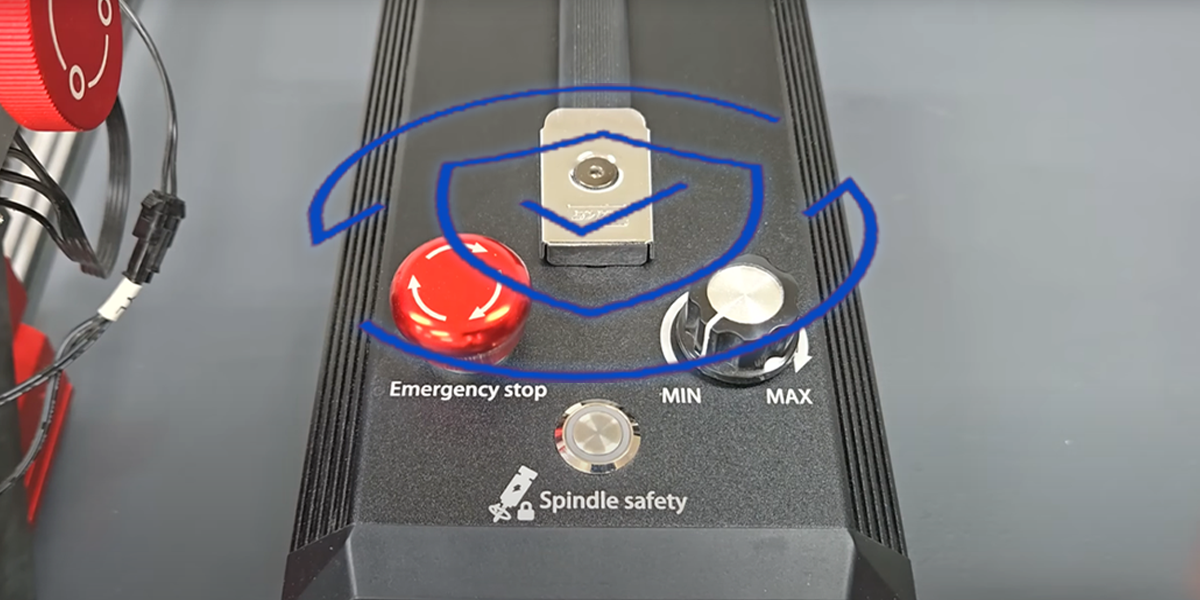

Motion Control, Emergency Stop,Speed Control, Laser/CNC Function Switch,Language Switch, Online Help
Supported systems
MacOS, Windows, and Linux
Software languages
Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, and Turkish
Safety certification
CE-EMC/CE-LVD/CE-MD/CE-RED/ROHS/FCC-Sdoc/FCC-ID
Optimal engraving temperature
0°~40°C
