Máquina CNC Router Ultra Twotrees TTC450+ Módulo láser TC20 + 4º eje

€1.084,95
€1.234,95 €1.084,95
SAVE €150,00
Los gastos de envío se calculan en la pantalla de pago.
Payment and Discount Info

💐💐💐 Annual Spring Mega Sale! Save Up To 58% OFF.

Refresh Your Setup This Spring — Your Dream Setup Awaits!

limited time offer
×

Alert me if this item is restocked.

We often restock popular items or they may be returned by the other customers.

Máquina CNC Router Ultra Twotrees TTC450+ Módulo láser TC20 + 4º eje

Por favor, introduce el nombre
Por favor, introduce el correo electrónico Dirección de correo electrónico no válida
Número de móvil requerido Código de país no válido Demasiado corto Demasiado largo Número de móvil no válido Válido

Tu notificación ha sido registrada.

¡Parece que ya tienes notificaciones activas para este tamaño!

Respetamos tu privacidad y no compartimos tu correo electrónico con nadie.

Alert me if this item is restocked.

We often restock popular items or they may be returned by the other customers.

Hemos cancelado tu solicitud.

Tipo de [Plug]: EE. UU.
Free Shipping
One Year Warranty
14 Days Free Return
Lifetime Support
Twotrees StoreFresadora CNC Twotrees TTC450 PRO + Husillo de 500 W + 4.º eje
Fresadora CNC Twotrees TTC450 PRO + Husillo de 500 W + 4.º eje
Máquina CNC Router Ultra Twotrees TTC450 + 4º Eje + Fresas de extremo
Twotrees StoreMáquina CNC Router Ultra Twotrees TTC450 + 4º Eje + Fresas de extremo
€1.084,95
€1.234,95 €1.084,95

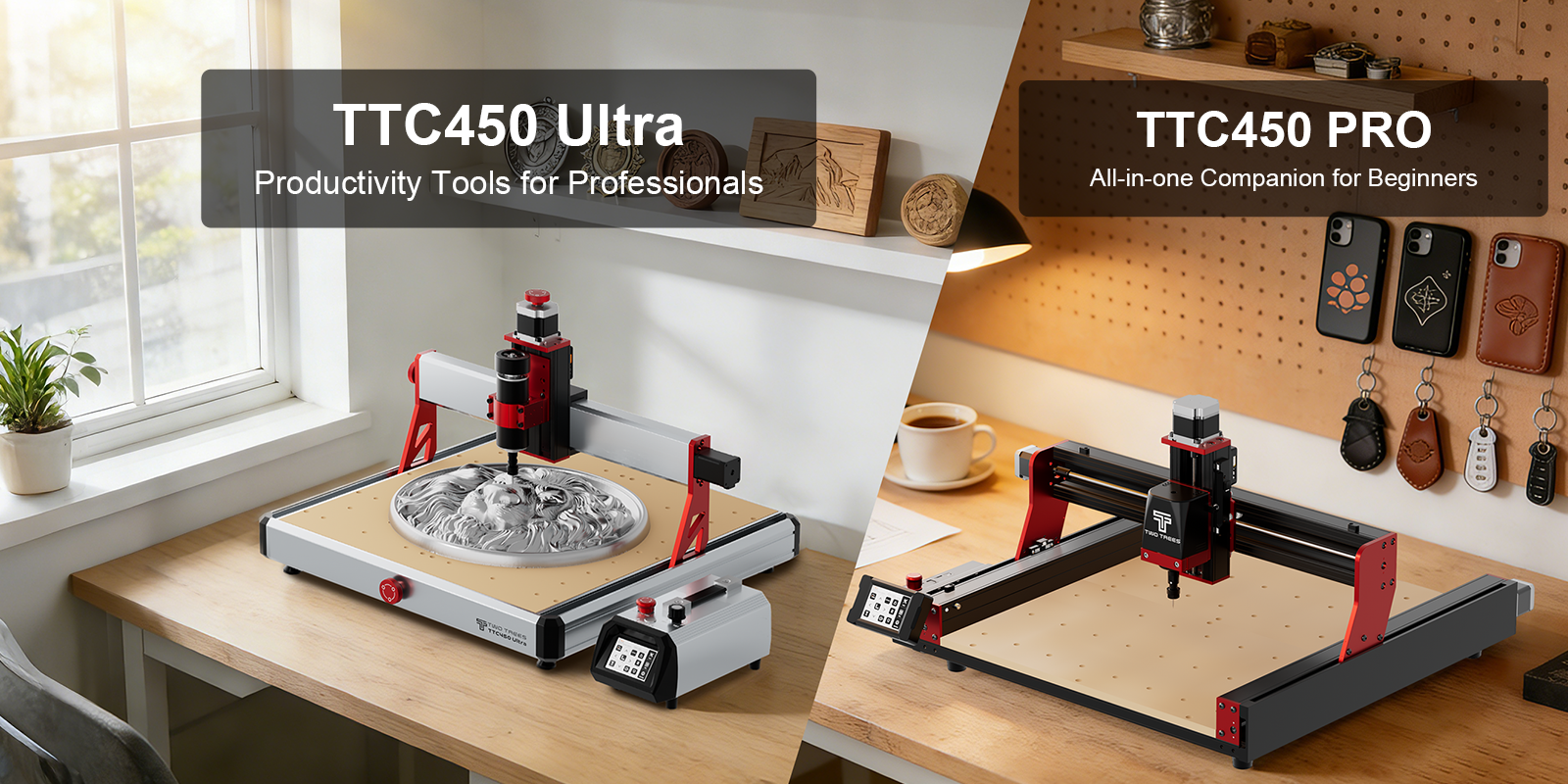

    The Features You Can Count On — In Both

    See the Difference in Performance,Precision & Protection

    Beyond Specifications, True Value Lies in How Performance Transforms your Workflow.

    Efficlency and speed

    Faster Cuts, More Creations

    With Ultra, finish faster and produce more in thesame time. With PRO, enjoy a steady, deliberate pace.

    Precision and Durability

    Precision Redefined,Durability Defined

    Ultra:Industrial-Grade Stability,12H Linear Rail for Micron-Level Precision.

    PRO: Robust construction for passionate projectcycles.

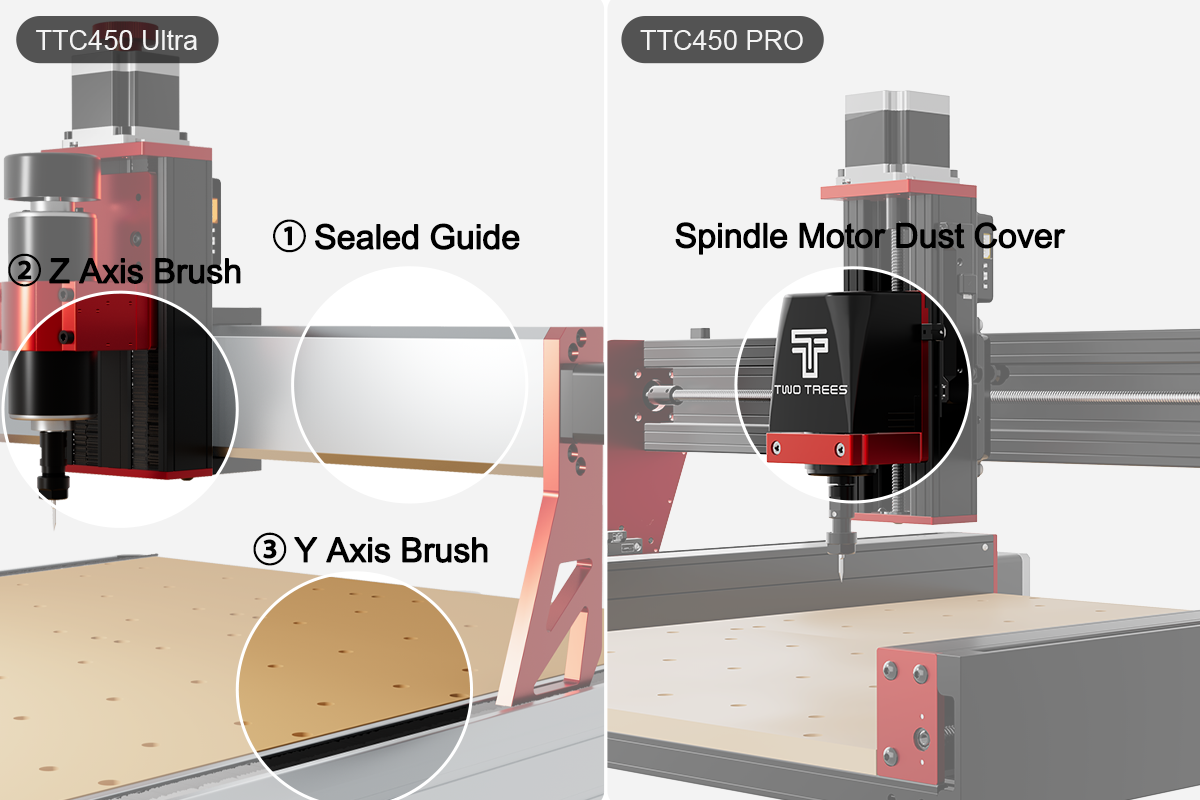

    User Experience

    Less Dust, Less Maintenance,More Creating

    Ultra: Comprehensive defense for high-volumestudios.(Dustreduction >85%)

    PRO: Smart protection for focused creative spaces.

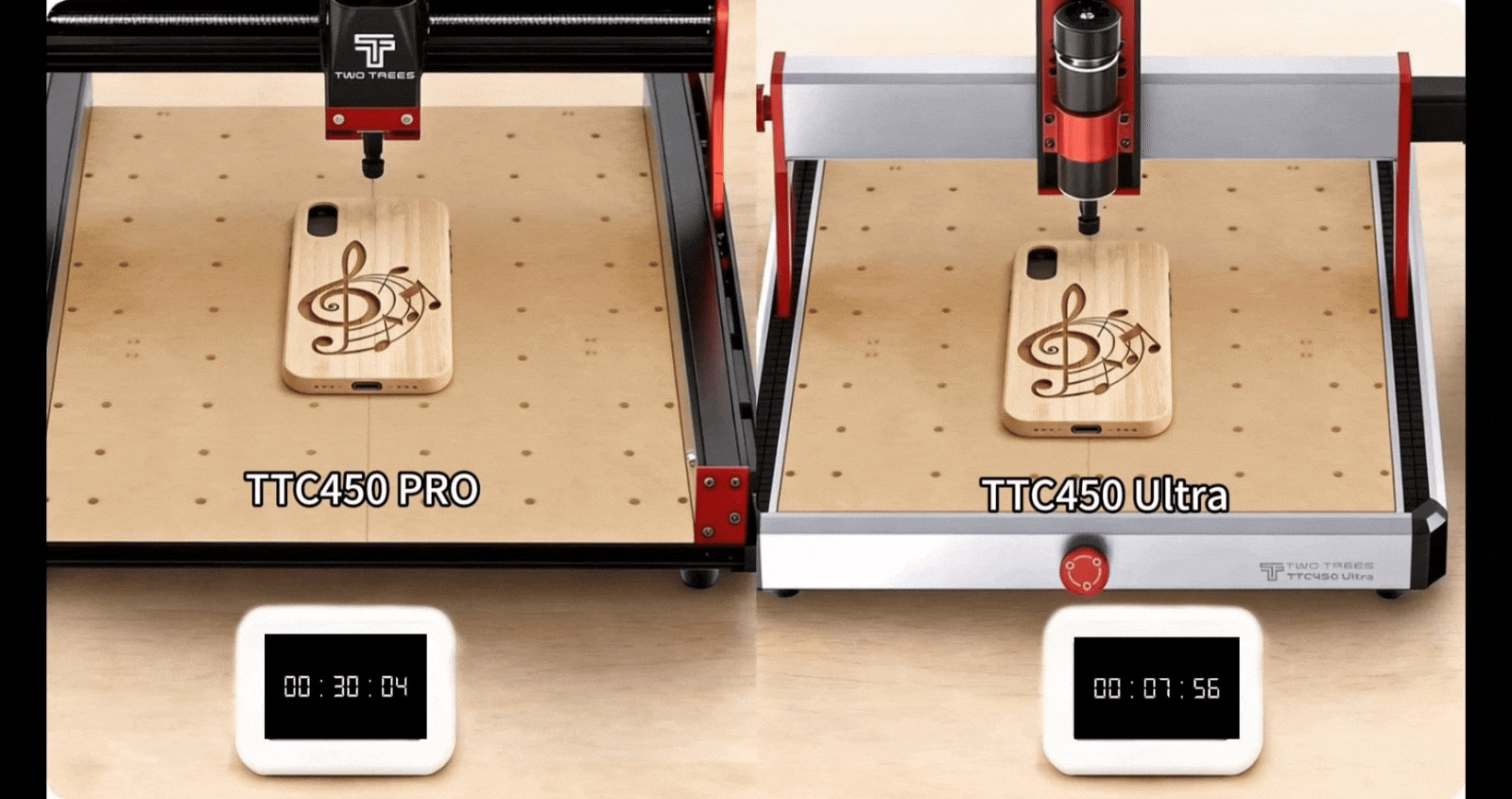

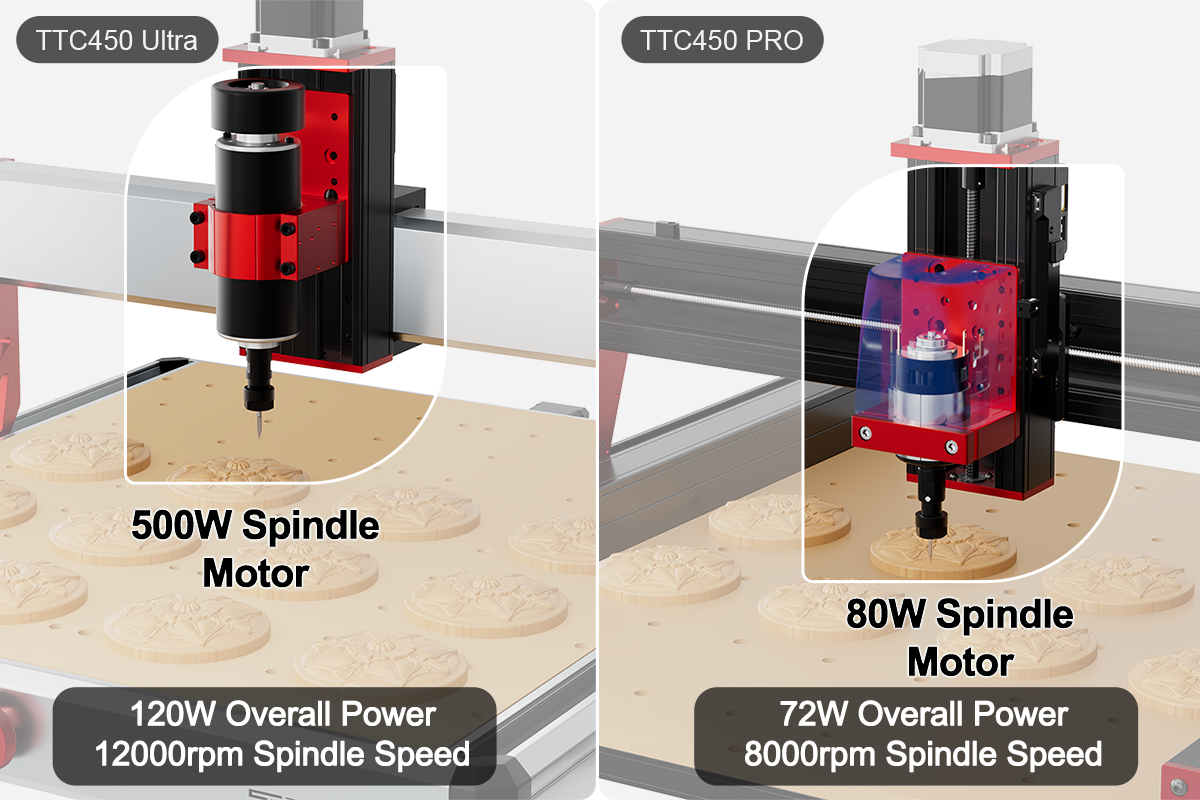

    Fewer Passes.Same Results.3x Faster

    120 Overall power, 3000mm/min engraving speed, same results,2-3x faster than Pro.

    Brass
    Brass

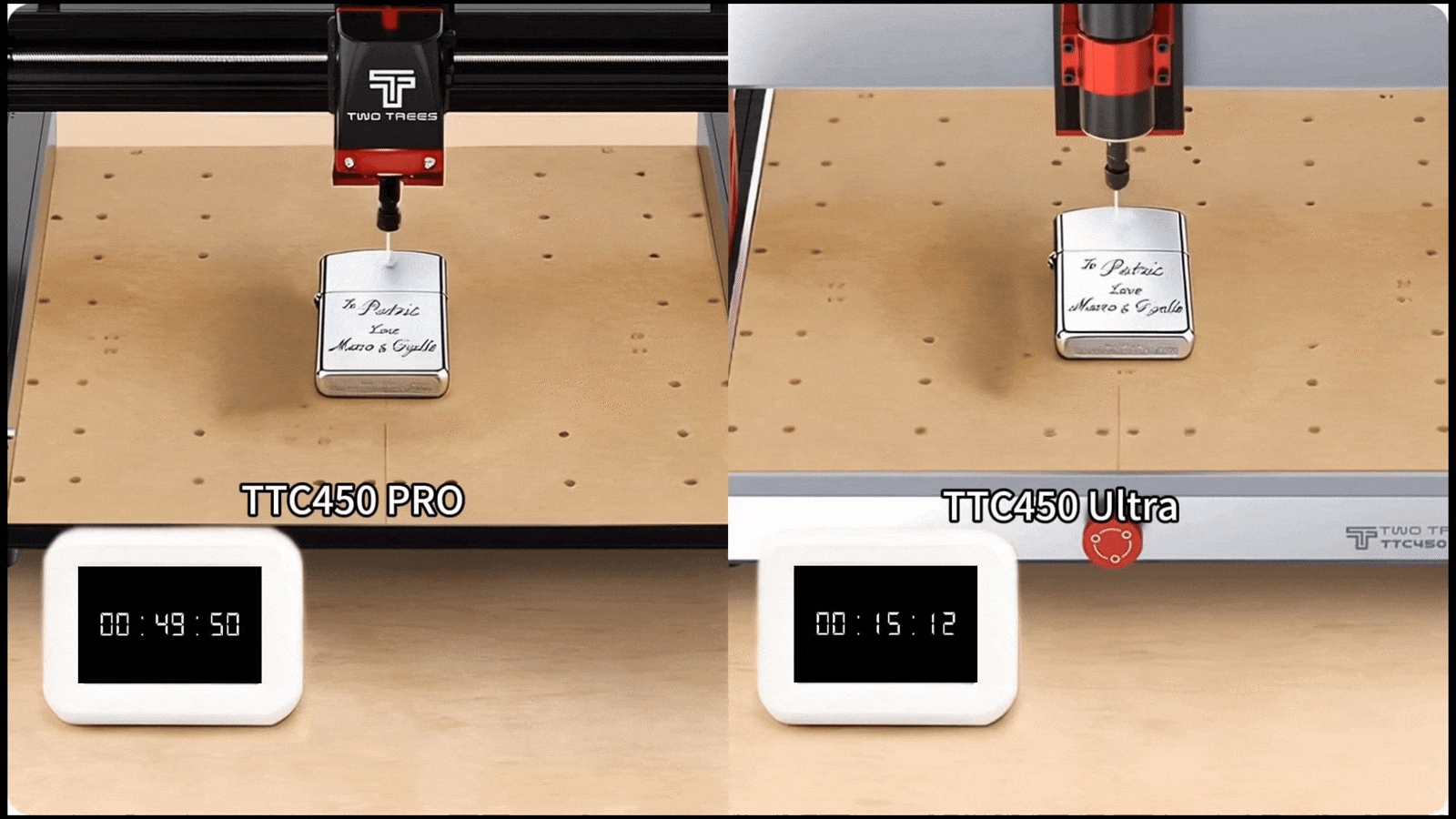

    Stainless
    Stainless

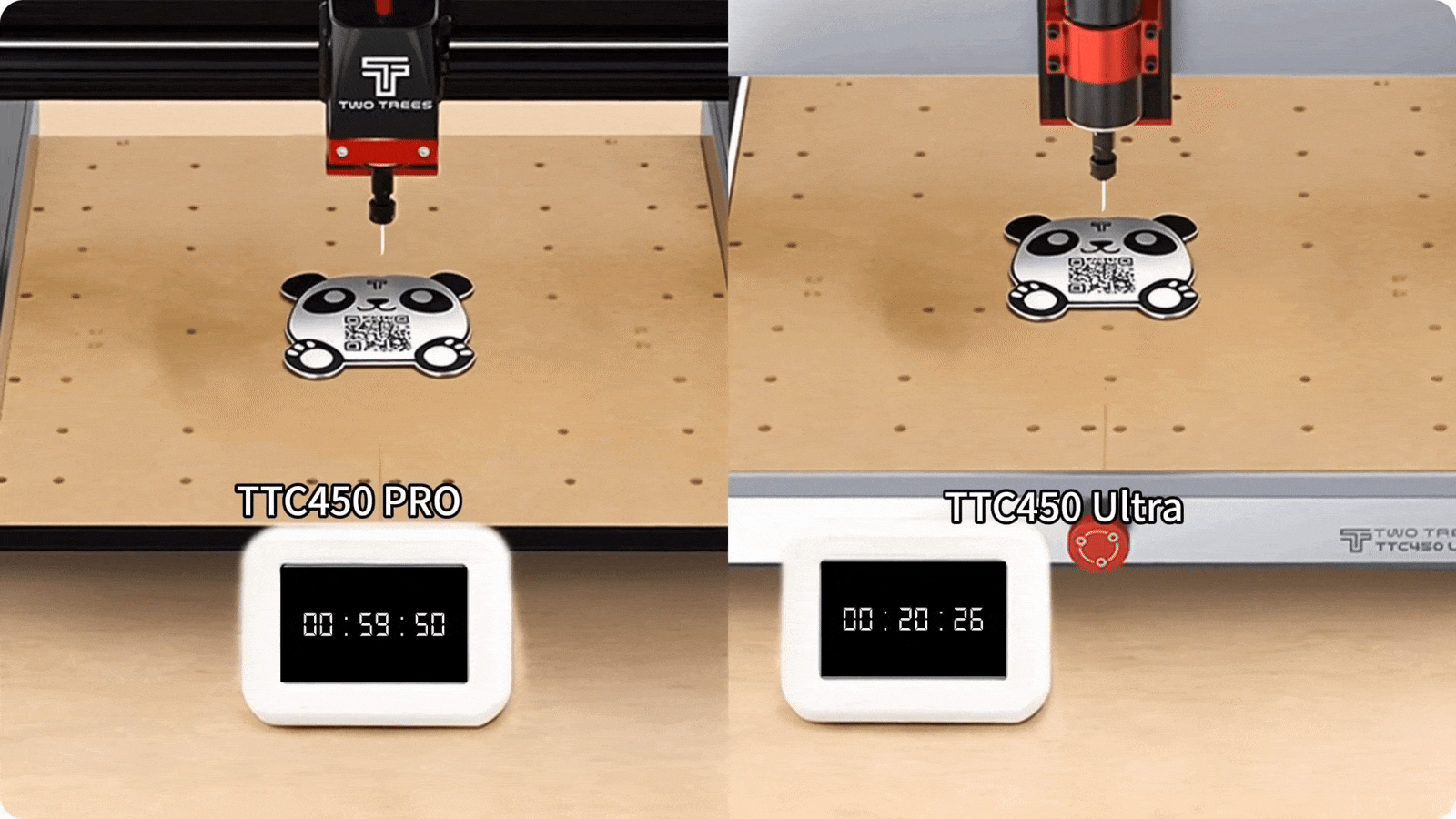

    Aluminum
    Aluminum
    Wood
    Wood

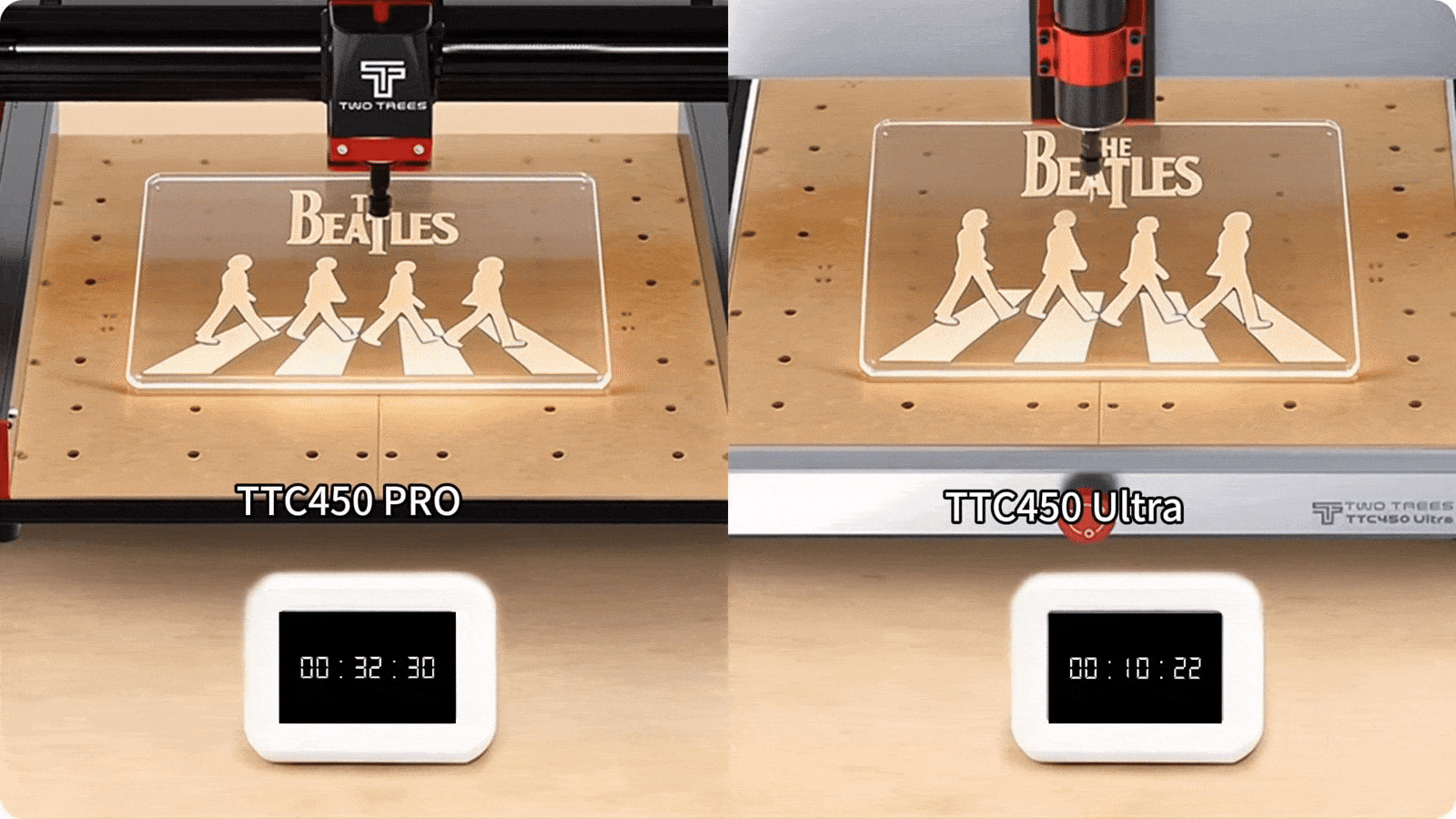

    Acrylic
    Acrylic
    Brass Stainless Aluminum Wood Acrylic

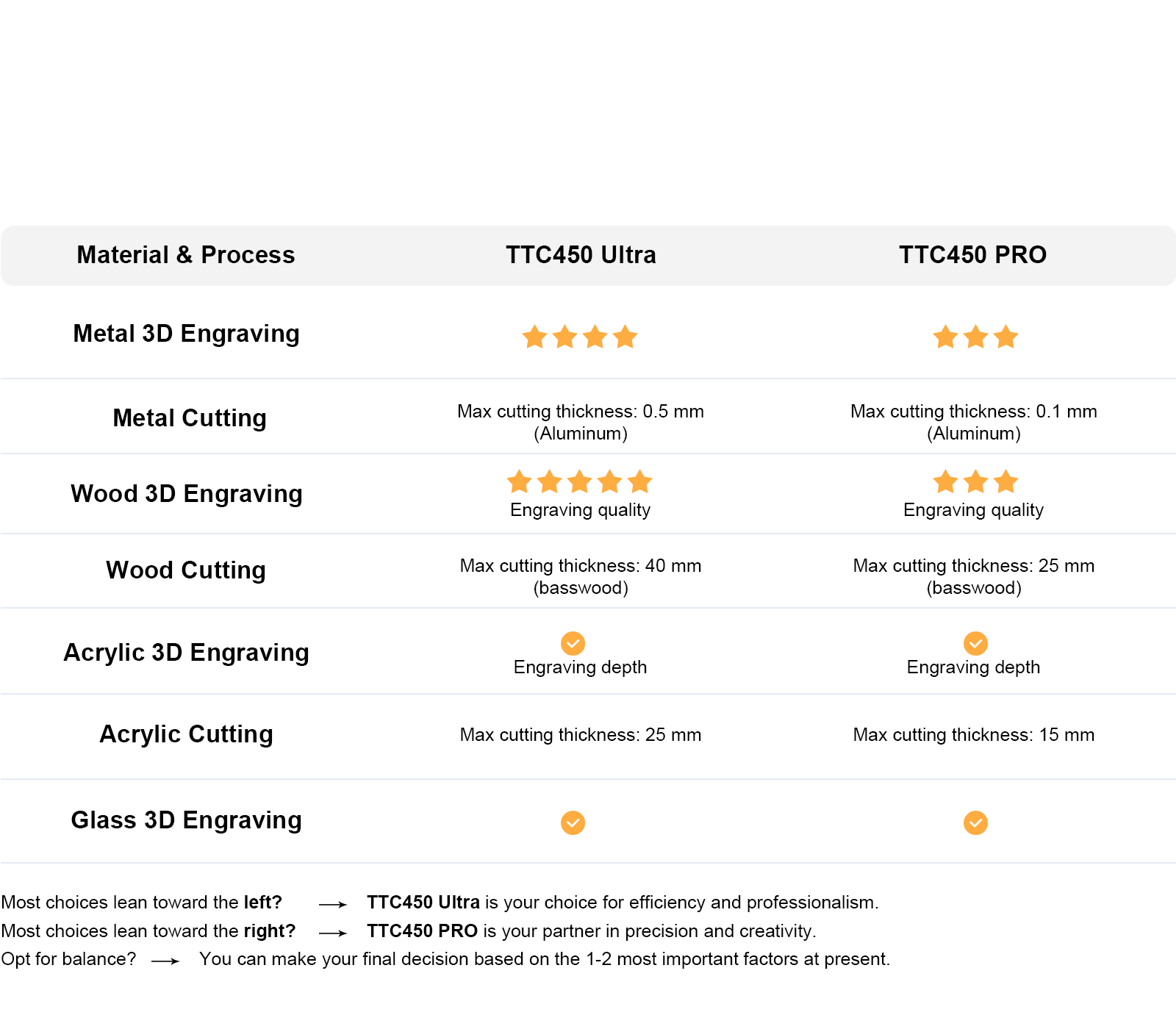

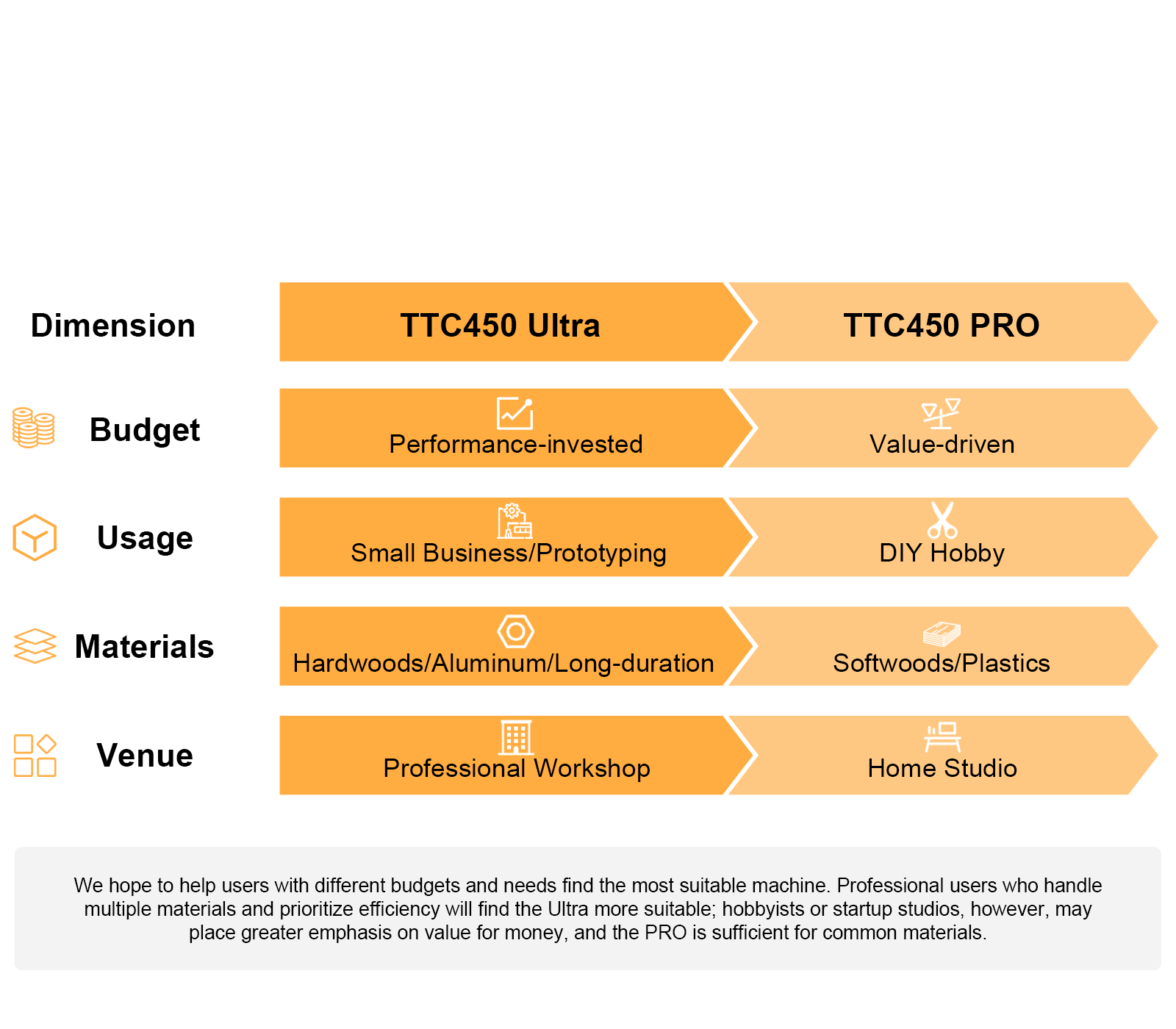

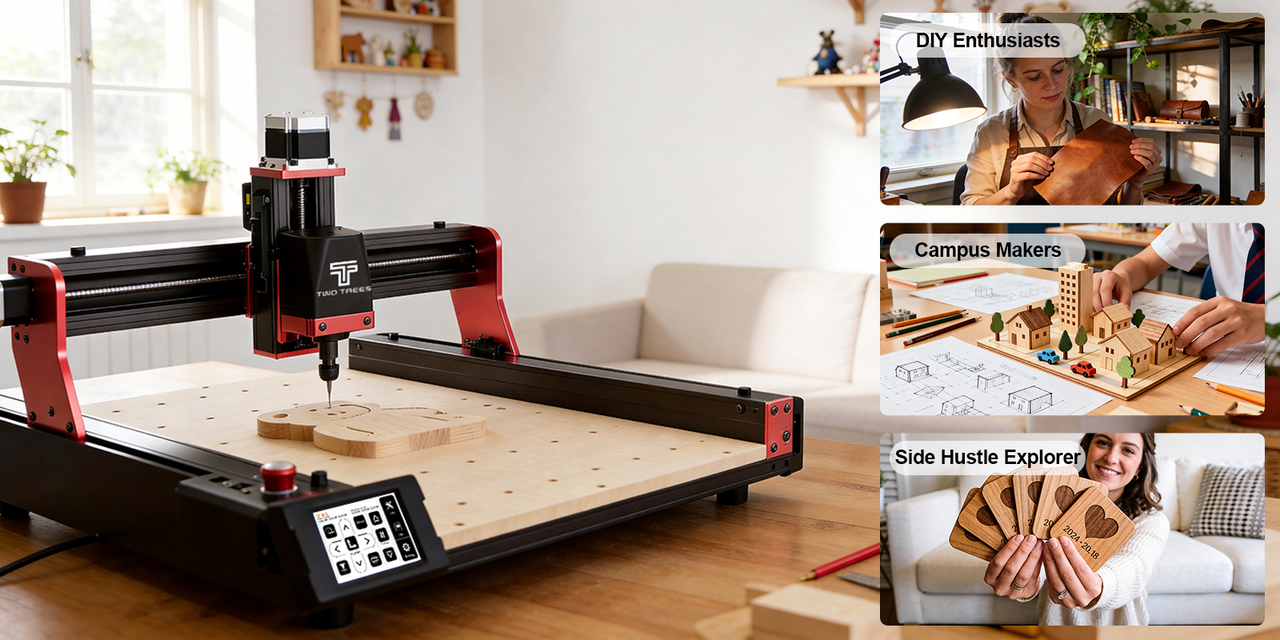

    Just Starting Out or Leveling Up?

    Unlock industrial-grade precision, engineered for mass production and demanding machining.

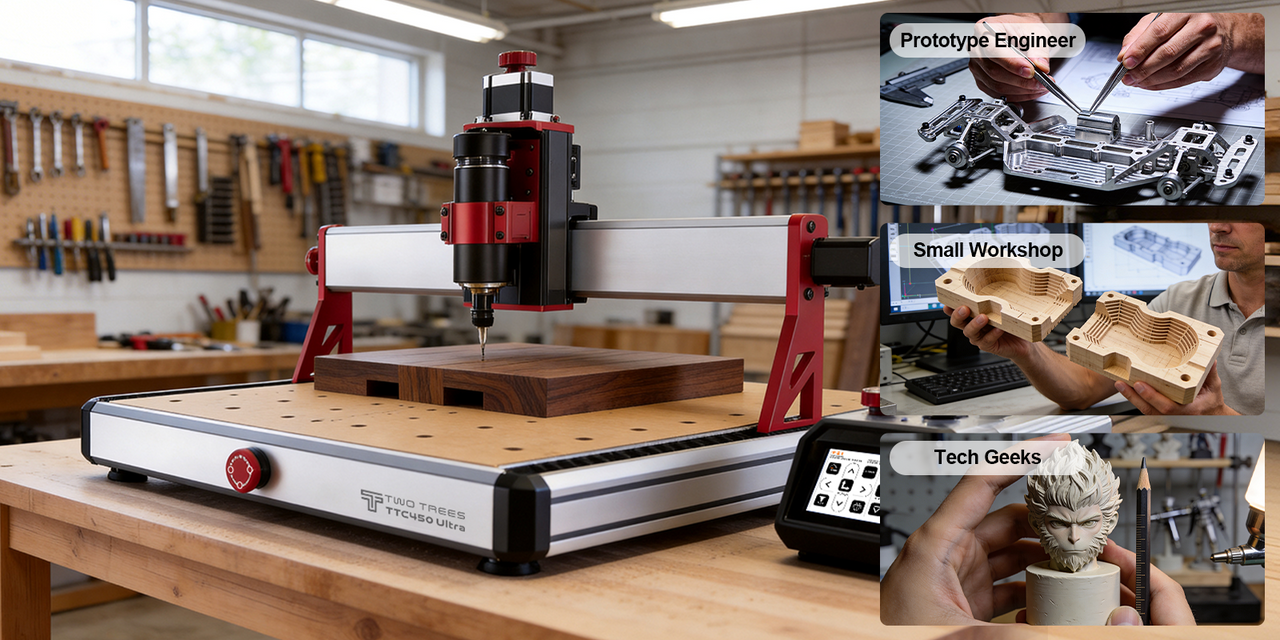

    TTC450 Ultra

    Boost All Types of Business with TTC450 Series

    To boost order value or foot traffic, Ultra is your professional tool for boosting productivity.

    Craft Fair & Pop-Up

    Craft Fair & Pop-Up

    Jewelry Business

    Jewelry Business

    Electronics Store

    Electronics Store

    Wedding Event

    Wedding Event

    Candle Boutique

    Candle Boutique

    Other Shop & Gifts

    Other Shop & Gifts

    Boost All Types of Business with TTC450 Series Boost All Types of Business with TTC450 Series Boost All Types of Business with TTC450 Series Boost All Types of Business with TTC450 Series Boost All Types of Business with TTC450 Series Boost All Types of Business with TTC450 Series

    What are the reviews about TTC450 Ultra？

    Product

    Specifications

    Main material

    Aluminum + Stainless Steel + Injection Molding

    Net weight

    19kg

    Control box dimensions

    300mm x 137mm x 131mm (11.81in x 5.39in x 5.16in)

    Machine dimensions

    745mm x 660mm x 473mm (29.33in x 25.98in x 18.62in)

    Working range

    460mm x 460mm x 100mm (18.11in x 18.11in x 3.94in)

    Supported tool diameter

    0.5mm to 7mm (ER11 Collet)

    Compatible engraving materials

    Plywood, MDF, Solid Wood, Acrylic, Carbon Fiber, Aluminum, Copper, Stainless Steel

    Packaging dimensions

    685x610x190mm

    Power supply

    216W dual-channel switching power supply

    Control board input voltage

    24V

    Maximum power consumption

    80W

    Standby power consumption

    12.6W

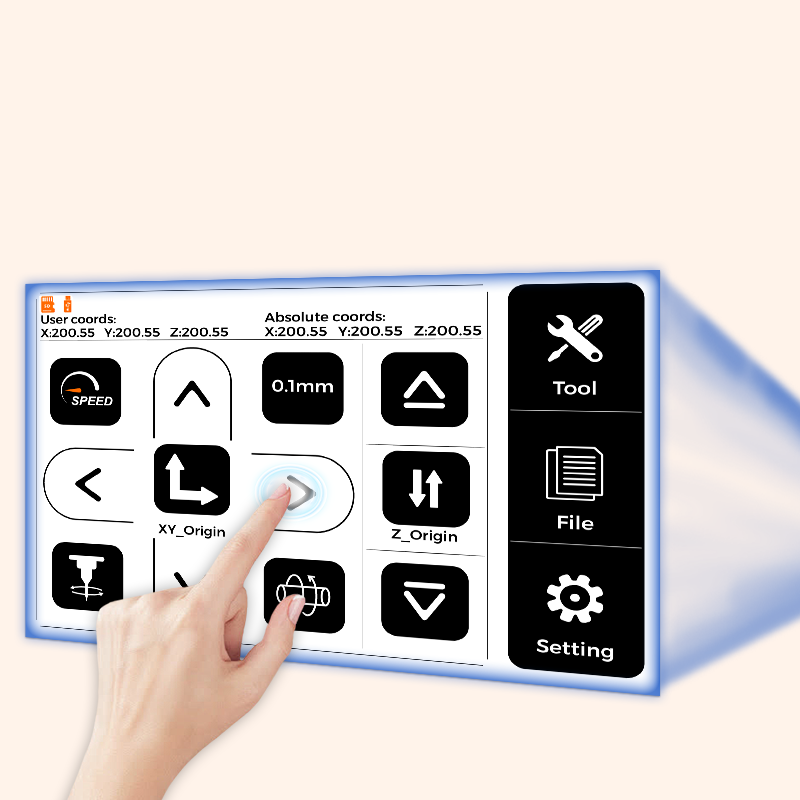

    Touch screen

    3.5-inch IPS capacitive touch color screen (480*320 resolution)

    Firmware type

    GRBL open source, supports both CNC and laser (no firmware flash required)

    Motion structure type

    XYZ

    X/y axis positioning accuracy

    0.01mm

    Z axis positioning accuracy

    0.025mm

    Engraving accuracy

    100±0.05mm

    Maximum engraving speed

    3000mm/min

    Maximum acceleration

    500mm/s²

    Spindle motor

    500W (standard)

    Spindle speed

    8000-30000 RPM depending on installation

    Tool size

    Supports tools with diameters from 0.5mm to 7mm, depending on the inner bore of the ER11 collet

    Engraving layer height

    0.1mm-20mm for non-metals
    0.1mm-0.2mm for metals

    Programming software

    VCarve, Fusion360, EASEL, Carveco Maker, FlatCAM,Camlab, Millmage, Carbide3D, and all Vectric software.

    Supported systems

    macOS, Windows, and Linux

    Software languages

    Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, and Turkish

    Supported program formats

    .nc and .Gcode

    Safety certifications

    CE-EMC/CE-LVD/CE-MD/CE-RED/ROHS/FCC-Sdoc/FCC-ID

    Optimal engraving temperature

    0° to 40°C
